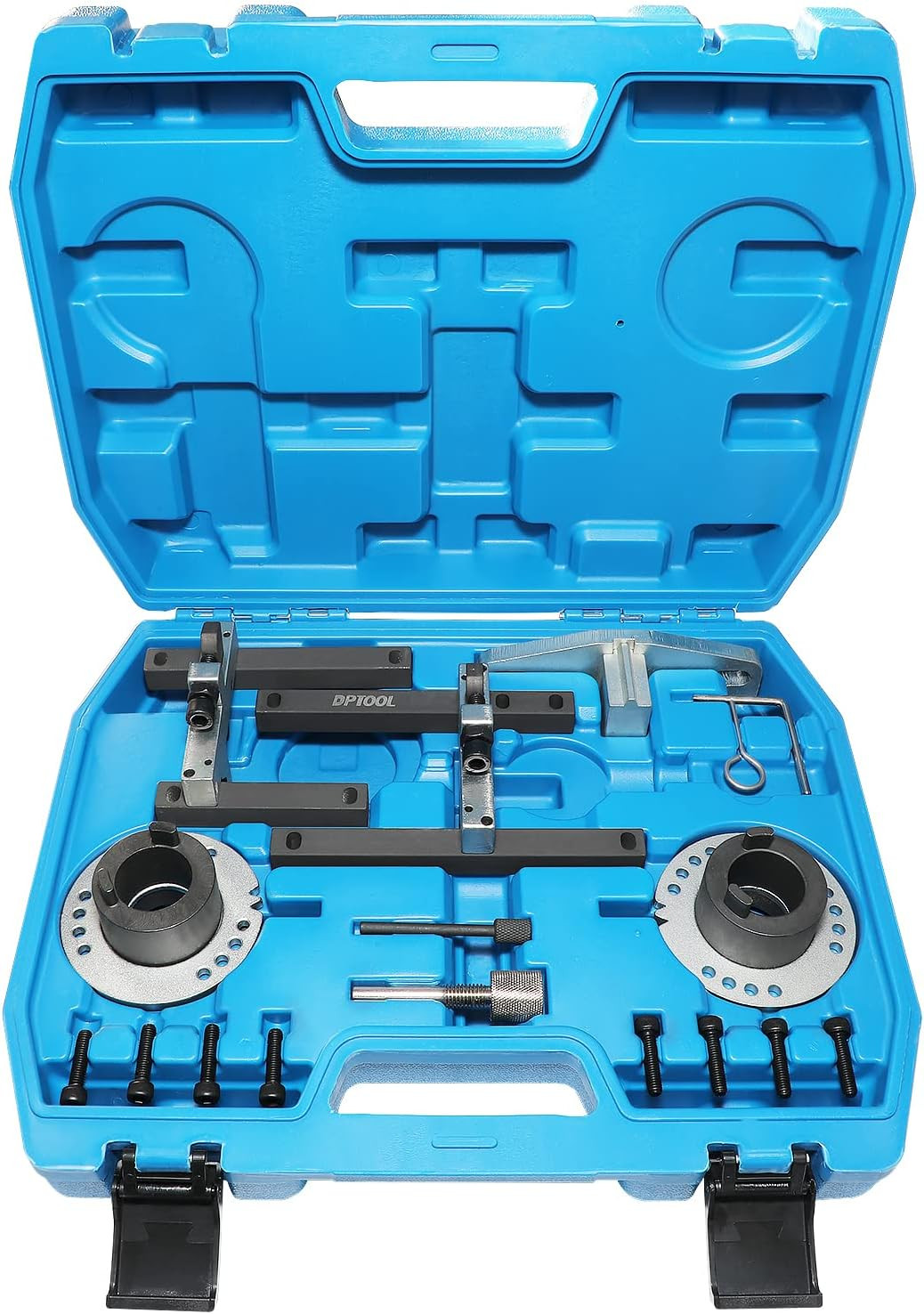

Ford 1.0 EcoBoost Engine Timing Locking Setting Tool Set for Belt Work
Writing
Product Overview
This Engine Timing Locking and Setting Tool Set is designed for compatible Ford 1.0L EcoBoost and 1.0L SCTi EcoBoost petrol engines. It provides a selection of timing alignment, locking, and positioning tools to assist with engine servicing and timing belt replacement procedures.
The set includes camshaft alignment and locking tools, a flywheel locking tool, a crankshaft top dead centre (TDC) timing peg, tensioner locking components, and an additional timing pin. These tools help hold and position relevant engine components during timing-related maintenance and repair work.
Suitable for professional automotive workshops, mechanics, and experienced DIY users, this kit brings several essential engine timing tools together in one portable storage case. Before purchasing, confirm your engine code and vehicle specifications to ensure compatibility with your particular engine version.
Key Features & Benefits
- Ford 1.0L EcoBoost Compatibility: Designed for specified 1.0L EcoBoost and SCTi EcoBoost petrol engine applications.
- Comprehensive Timing Tool Set: Includes multiple alignment and locking components for engine timing procedures.
- Camshaft Alignment Tool: Helps position the camshaft during appropriate engine servicing operations.
- Camshaft Locking Tool: Supports camshaft positioning while carrying out compatible timing maintenance.
- Flywheel Locking Tool: Helps secure the flywheel in the required position during specified procedures.
- Crankshaft TDC Timing Peg: Assists with locating the crankshaft's top dead centre position.
- Tensioner Locking Pin: Supports the positioning of compatible timing belt tensioner components.
- Additional Timing Pin: Provides another positioning component for applicable timing procedures.
- Portable Storage Case: Keeps the included tools organized and convenient to transport between workshop locations.
- Workshop and Maintenance Use: Suitable for mechanics and experienced users performing compatible engine timing and belt replacement work.
Multiple Uses / Applications
This timing tool set is intended for compatible engine maintenance and repair tasks, including:
- Timing Belt Replacement: Helps position and secure relevant engine components during applicable belt replacement procedures.
- Camshaft Alignment: Assists with maintaining the specified camshaft position during timing work.
- Crankshaft Positioning: Supports crankshaft alignment at the required top dead centre position.
- Flywheel Locking: Helps hold the flywheel in position during compatible servicing operations.
- Timing Belt Tensioner Work: Includes locking components for relevant tensioner procedures.
- Engine Maintenance: Suitable for selected timing-related repairs on compatible Ford petrol engines.
- Automotive Workshop Applications: Useful for professional garages and mechanics working on supported engine variants.
Always follow the correct service procedure for the specific engine version. Engine timing work requires accurate positioning and appropriate tools; verify all alignment marks and locking positions before completing any repair.
Product Details / Specifications
- Product Type: Engine timing locking and setting tool kit
- Primary Application: Ford 1.0L EcoBoost petrol engines
- Additional Application: Selected Ford 1.0L SCTi EcoBoost engines
- Tool Material: Steel
- Storage: Portable tool case
- Included Documentation: Instruction manual
- Intended Users: Automotive technicians, mechanics, and experienced DIY users
Compatible Engine Codes
The listed engine codes include:
- M1DA
- P4JA
- XMJA
- M1JA
- P4JB
- XMJB
- M2DA
- SFJA
- M2GA
- SFJB
Compatible Vehicle Applications
Depending on the engine code, production year, and configuration, the tool set may be suitable for selected versions of the following vehicles:
- Ford Fiesta
- Ford Focus
- Ford C-MAX
- Ford B-MAX
- Ford EcoSport
- Ford Transit Connect
- Ford Tourneo Connect
Compatibility varies by engine version and production date. Verify the engine code and applicable service requirements before ordering, as not every vehicle listed uses the same timing arrangement.
Package Contents
- 1 × Camshaft alignment tool
- 1 × Camshaft locking tool
- 1 × Flywheel locking tool
- 1 × Crankshaft TDC timing peg tool
- 1 × Tensioner locking pin
- 1 × Additional locking pin
- 1 × Additional timing pin
- 1 × Portable storage case
- 1 × Instruction manual
The kit is intended for the listed engine applications. Please compare the required tool configuration with your vehicle's service information before use.
